【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
----------------------------------------------------------------------
①Oscilloscope mode: 1. The waveform refresh rate is as fast as 10000wfms/s. 2.Dual channel, bandwidth up to 50MHZ, real-time sampling rate up to 125MSa/s, record length up to 8k. 3. Cursor measurement function. 4.7 automatic measurement functions. 5.XY function. 6.One-key automatic configuration function, convenient for testing and debugging.
②Multimeter mode: 4 1/2 digits of actual RMS value, digital display: 20000 readings. 1. Standard voltage, current, resistance, diode, continuity and capacitance tests. 2.Auto range function is convenient for testing and debugging. 3.The maximum input voltage is 750VAC and 1000VDC. 4.Independent multimeter and oscilloscope input. 5. Read hold function. 6.Relative measurement function.
③The USB Type-C interface supports not only mobile power but also adapter charging. With ultra-low power consumption of less than 3W, it can operate continuously for about 6 hours. Supports computer connection. When connected to a computer, the oscilloscope is recognized as a USB flash drive and can read saved images and CSV waveforms, making it convenient for future waveform viewing and analysis, as well as waveform data sharing.
④Save function: 4 sets of settings, 4 sets of reference waveforms, 4 images and 4 sets of waveforms in CSV format. Displaying the reference waveform and measurement waveform on the same screen makes it easy to compare waveforms. Self-calibration function. Up to 6 automatic measurements can be displayed on the screen at the same time.

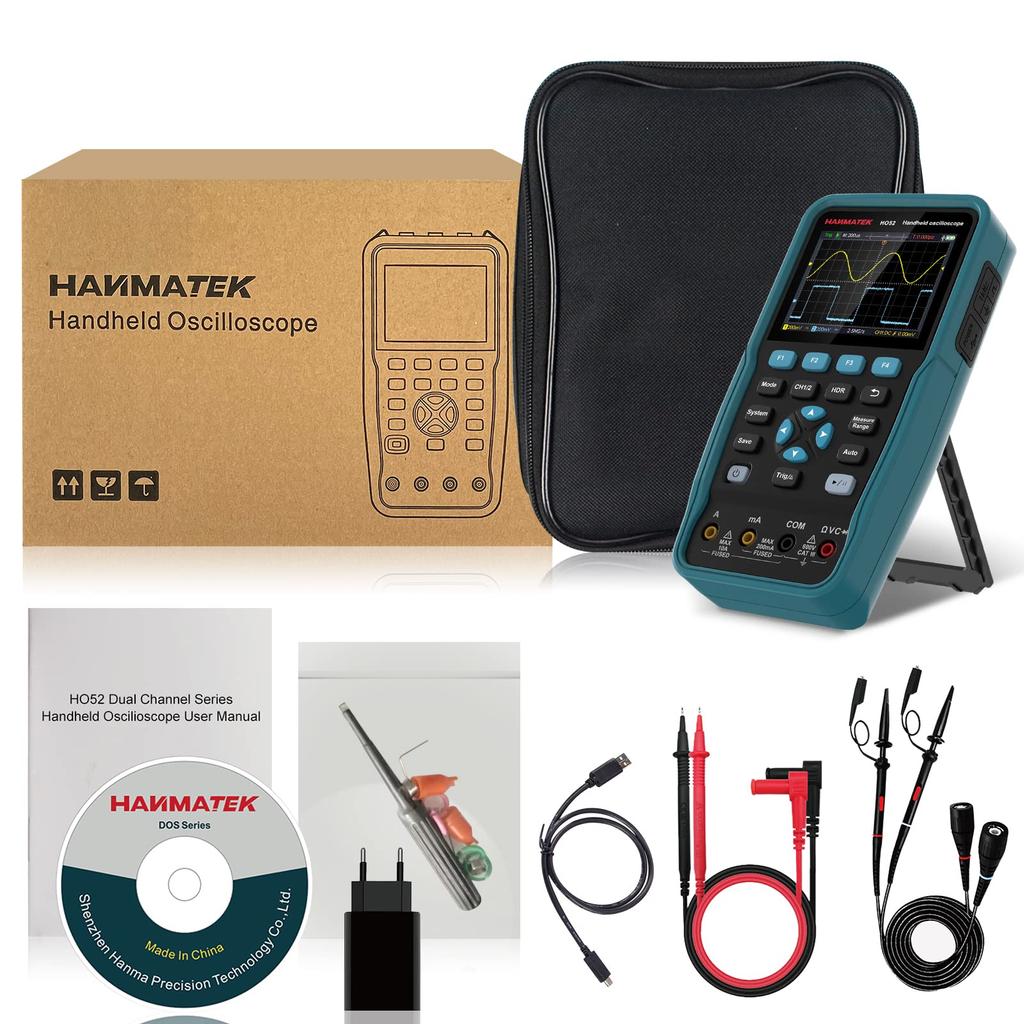

⑤1*HO102 2-in-1 Handheld Digital Oscilloscope and Multimeter, 1*Carrying Bag, 2*Oscilloscope Probe, 1*Adapter, 1*USB Cable, 1*Multimeter Pen, 1*Manual, 1*Calibration Pen, 1*CD (Note: The Japanese version is subject to customs policy. There is no CD.
handheld oscilloscope HANMATEK
