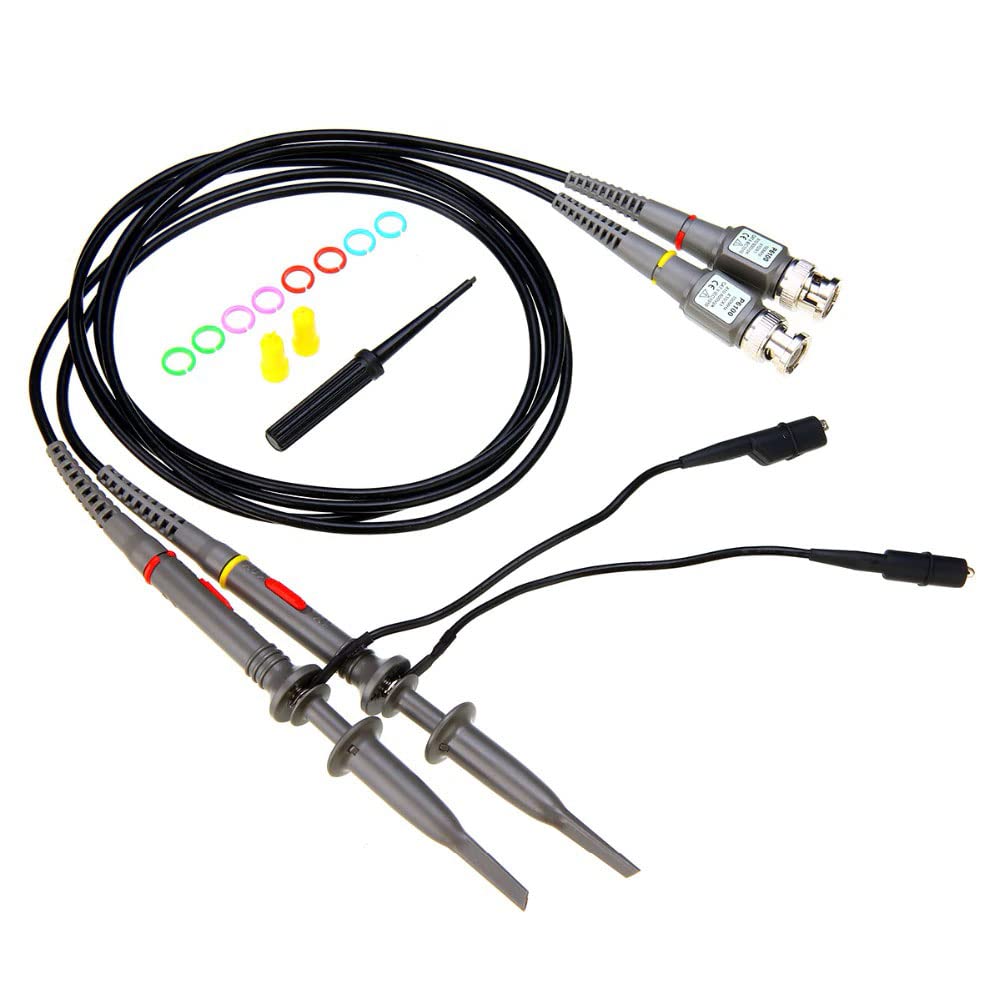

A set of two oscilloscope probes 100MHz.
You cannot choose the color of the identification marker ring.
specification
Frequency band DC~100MHz
Damping ratio 10:1,1:1
Input resistance 10MΩ±2%(10:1),1MΩ±2%(1:1)
Input capacitance 14pF-18pF(10:1)
Maximum input voltage ＜x200(Peak)(1:1) ＜x600(Peak)(10:1)
Measurement temperature 0℃~+50℃ 0~80%(humidity)
Storage temperature -20℃~+60℃ 0~90% (humidity)
Cable length 110cm
Weight 55g
accessories
probe x2
hook tip x2
2 ground leads
English manual
