Features:
*Made of high-quality materials,
*According to the LGPL license agreement, based on the design of OwOComm, SAA2 is a portable 3GHz vector network analyzer.
*It uses a user interface equivalent to NanoVNA, but uses a different technical architecture.
*It will not load the initial calibration data at startup, and will not automatically insert the calibration data after the user changes the frequency.
*After each startup and frequency change, you must recalibrate or recall the calibration data. Please read the instruction manual carefully before use to avoid damage to the equipment.
Specifications:
*Frequency range: 50kHz-3GHz
* dynamic range (correction): 70dB (up to 1.5GHz), 60dB (up to 3GHz)
*S11 noise level (correction): -50dB (up to 1.5GHz), -40dB (up to 3GHz)
*Scan speed: 100 points/sec
*Display: 2.8 inches, 320 x 240
*USB interface: MINI USB
*Power supply: USB, maximum charging current 1A
*Power connector: for JST-XH 2.54mm
*Maximum scan point (on the device screen): 201
*Maximum scan point (USB): 1024
*Port 2 return loss (1.5GHz): 20dB typical
*Port 2 return loss (3GHz): minimum 13dB
*VNA-QT software compatible : For Linux, For casement (7+), For Mac OS has been planned

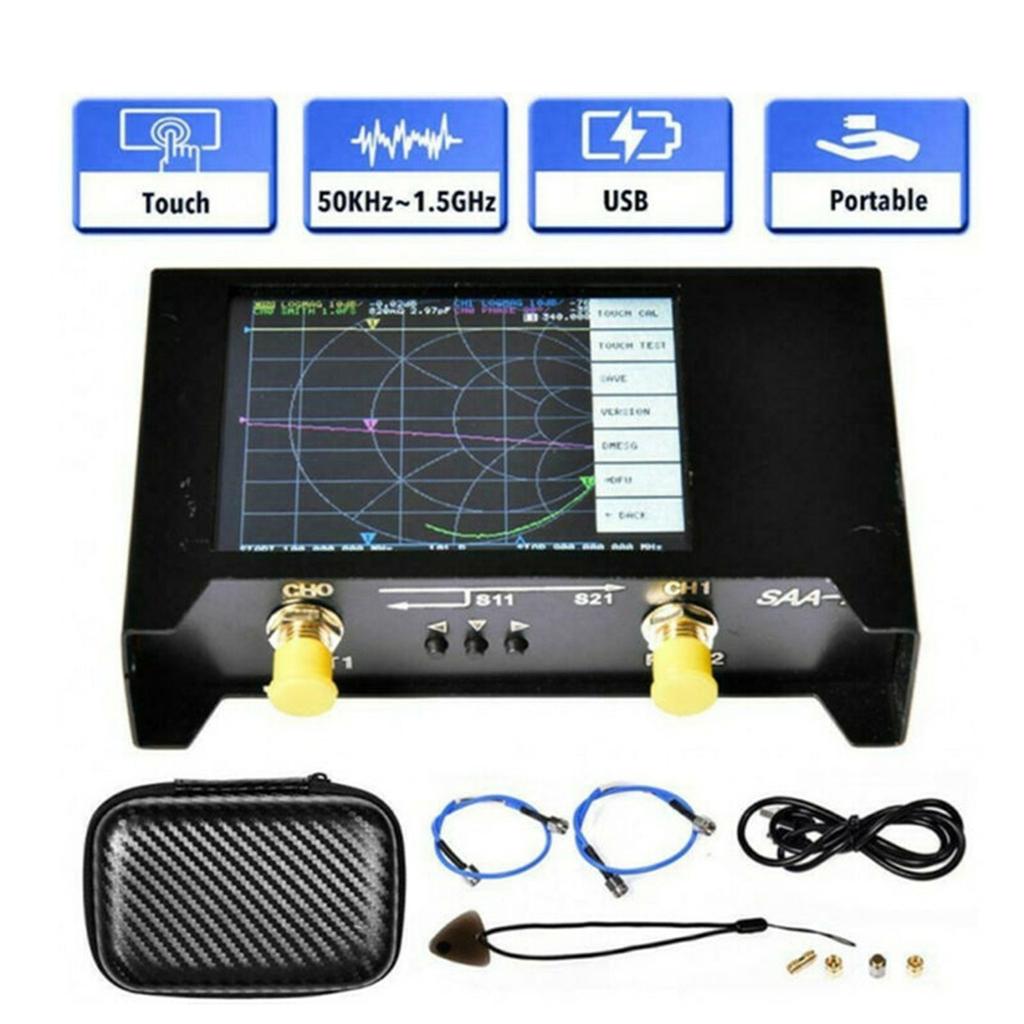

Package Included: 1 *S-A-A-2 host (built-in 1950mAh battery)
1 *USB data cable
2 *30cm SMA male to male SS405 RF cable
1 *SMA simple calibration kit OPEN
1 *SMA simple calibration kit SHORT
1 *SMA simple calibration kit LOAD
1 *SMA female to female connector
1 *EVA partial carrying bag
1 *Touch pen
