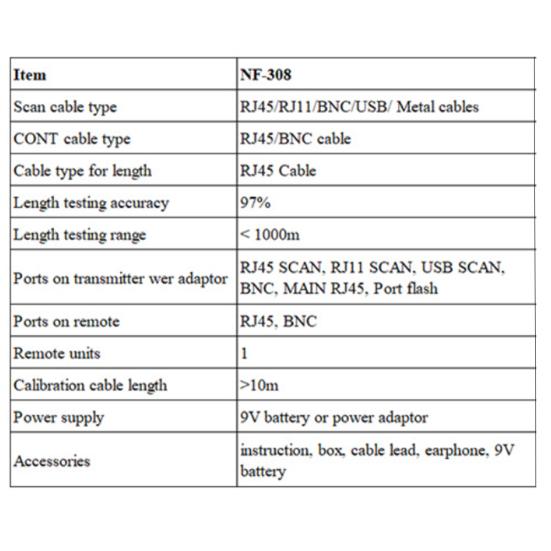

Specifications:
You can use it to find BNC coaxial cable, shielded and ordinary network cable, four-core network cable, telephone cable, USB cable and other metal cables.
It can measure the length of the network cable within 305 meters, can determine the position of short circuit and break point, and has the calibration function.
The product can open, short, cross and support the local line of the network cable, and test the short circuit of the BNC coaxial cable.
This cable tester has automatic delay shutdown and backlight function.
Featuring illumination function, the cable tester is easy to work in dark environment.
Its self-checking function can automatically compensate the influence of battery power change and environmental temperature change.
Item Name: Network Cable Tester
Transmitter:
Material: Plastic
Display: LCD, 53x25mm, with Backlight
Tone Frequency: 225Hz
Maximum Transmission Distance: 2km
Maximum Cable Diagram Distance: 1km
Maximum Working Current: Less than 70mA
Tone Mode: Dual Tone Adjustable
Compatible Connectors: RJ11, RJ45, Coacial, USB
Maximum Signal Voltage: 15Vp-p
Function Selection: 3 Position Buttons and 1 Power Switch
Function and Fault LCD Display: LCD Display (Wiring Diagram, Audio, Short Circuit, No Adapter, Low Battery)
Cable Diagram Indication: LCD (#1-#8)
Screening Indication: LCD (#9)
Voltage Protection: AC 60V/DC 42V
Battery Type: 1 x DC9.0V (NEDA 1604/6F22 DC9V) (Included)
Dimensions: 185mm x 80mm x 32mm/7.28" x 3.15" x 1.26" (Approx.)
Receiver:
Material: Plastic
Frequency: 225kHz
Maximum Working Current: Less than 70mA
Earphones: 1
LED Lighting: 2
Battery Type: 1 x DC9.0V (NEDA 1604/6F22 DC9V) (Included)
Dimensions: 218mm x 46mm x 29mm/8.58" x 1.81" x 1.14" (Approx.)
Remote Device:
Compatible Connectors: RJ11, RJ45, Coacial, USB
Dimensions: 107mm x 30mm x 24mm/4.21" x 1.18" x 0.94" (Approx.)
Notes:
Due to the light and screen setting difference, the items color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
Package Includes:
1 Set of Network Cable Tester(3Pcs)
2 x Batteries
1 x Earphone
1 x Network Cable Adapter
1 x Cable Clamp
1 x User Manual
