Features:
* brand new and high quality
*Made of high quality material, and practical to use
*This is THE best option for having water tight connections on your e-bike. Mostly found on the for Bafang range of electric bike equipment, these connectors come in a wide range of available pins, to help you make your wiring lom

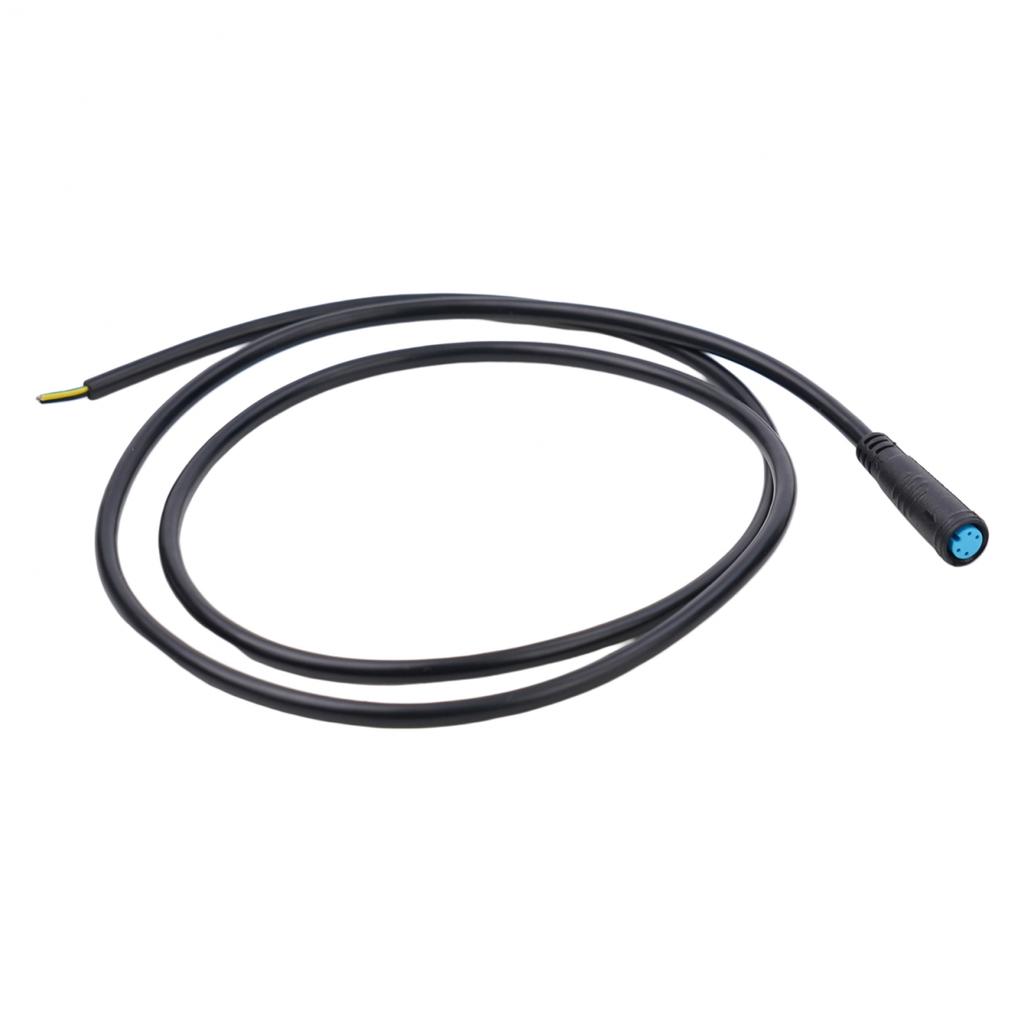

*Each male or female connector comes with 1m of cable length, moulded connector on end, bare cable on the other.
*Be sure to choose the male or female end that you require, or both if you need the pair.
*These Higo connectors are rated at 2A for each pin/core and have colour coded ends:
*Julet Connector
RED = 2 PIN
YELLOW = 3 PIN
BLUE = 4 PIN
GREEN = 5 PIN
PURPLE or BLACK = 6 PIN
BLACK = 8 PIN
Specifications:
*Material: ABS
*Temperature Range:-40degree Celsius～+85degree Celsius
*DIMENSIONS:
2-pin to 6-pin cables:
Wire diameter: 3.7mm
Wire length: 1000mm(1 metre)
diameter: 9mm
length: 35mm
8-pin cable:
Wire diameter: 6mm
Wire length: 1000mm(1 metre)
diameter: 12mm
length: 38mm
Pin Out
Looking directly at the with the indent at the top:
Looking directly at the with the indent/gap at the top:
*Optional types:2-Pin Female,3-Pin Female,4-Pin Female,5-Pin Female,6-Pin Female,2-Pin Male,3-Pin Male,4-Pin Male,5-Pin Male,6-Pin Male
Package Contents:
1*Modified accessories
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
